Community detection on geometric graphs

Spatial Queues with Nearest Neighbour Shifts

B. R. Vinay Kumar & Lasse Leskelä

INRIA NIM
April 15, 2025
Sophia Antipolis, France

Motivation

Airports

Supermarkets

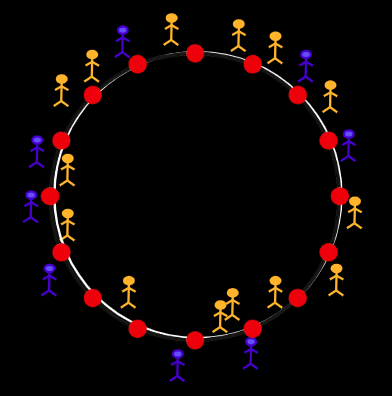

Restless jumper

Goal: Understand overload behavior when customers follow strategies.

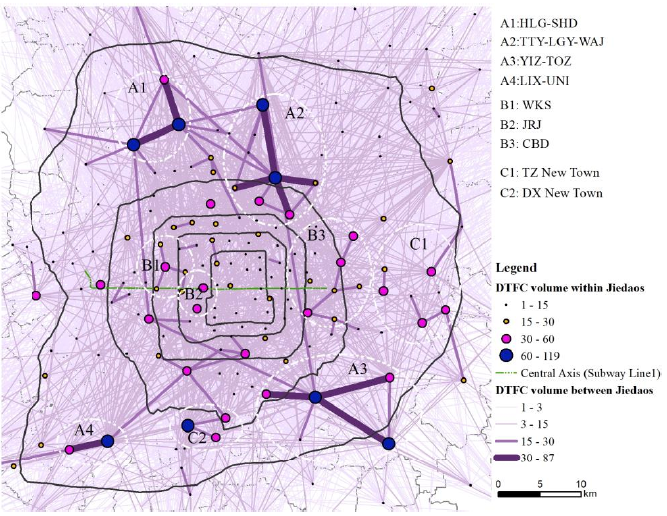

EV charging

J. Kang, C. Kan, and Z. Lin,

“Are Electric Vehicles Reshaping the City? An Investigation of the Clustering of Electric Vehicle Owners’ Dwellings and Their Interaction with Urban Spaces,”

ISPRS International Journal of Geo-Information, vol. 10, no. 5, May 2021.

Related work

E. Altman, H. Levy, Queueing in space, Adv. in Appl. Probab. 26 (4) (1994) 1095–1116.

N.K. Panigrahy, T. Vasantam, P. Basu, D. Towsley, A. Swami, K.K. Leung, On the analysis and evaluation of proximity-based load-balancing policies, ACM Trans. Model. Perform. Evaluat. Comput. Syst. 7 (2–4) (2022) 1–27.

System Model

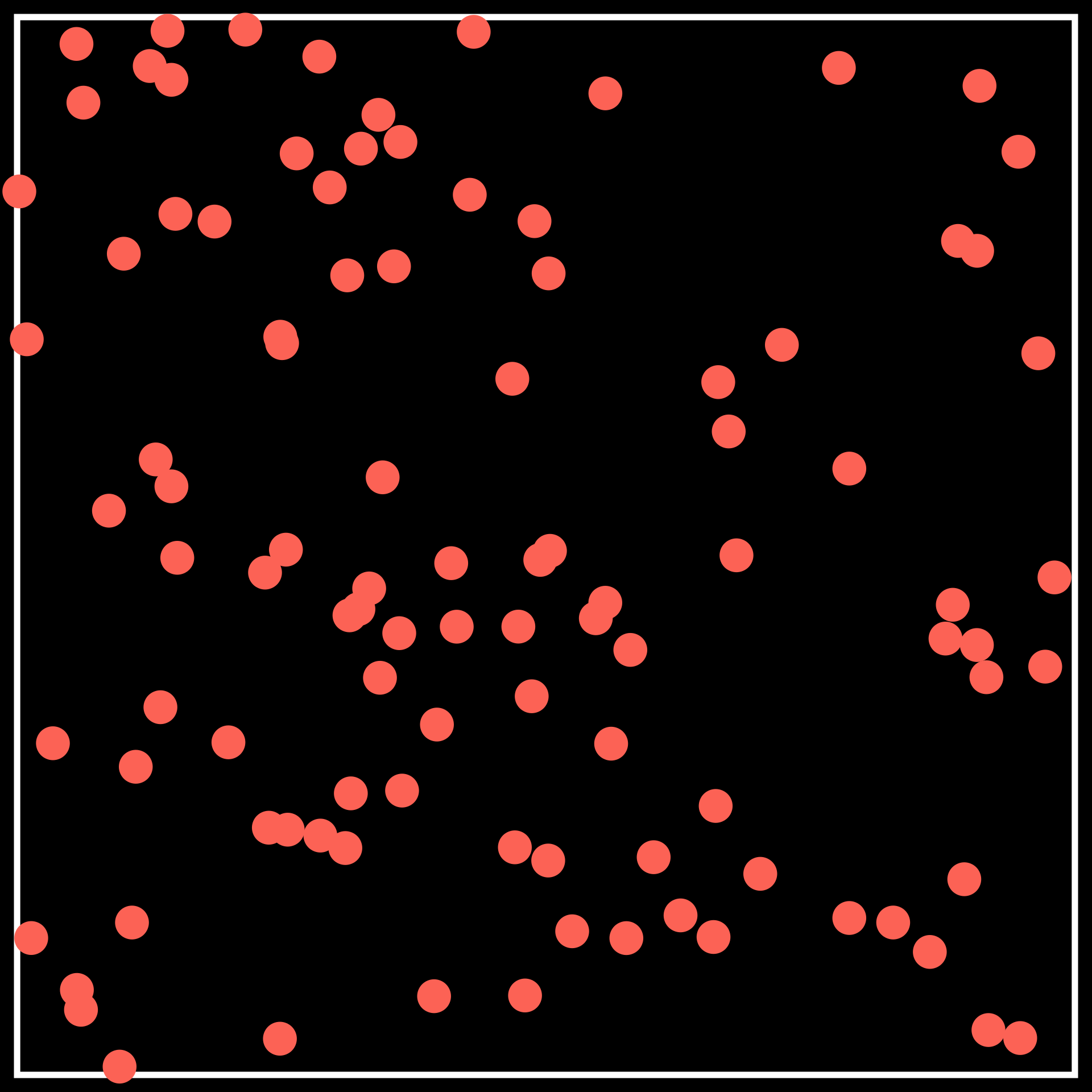

$N$ service stations distributed uniformly $\{X_i\}_{i=1}^N \subset [0,1]^d$

Each service station:
- Service rate: $\mu$
- Arrival process: $\lambda$
- Infinite capacity

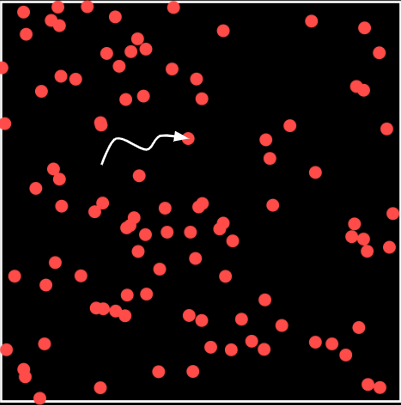

$(k, p)$-Nearest Neighbour Shift (NNS)
- Customer arrives at server $i$

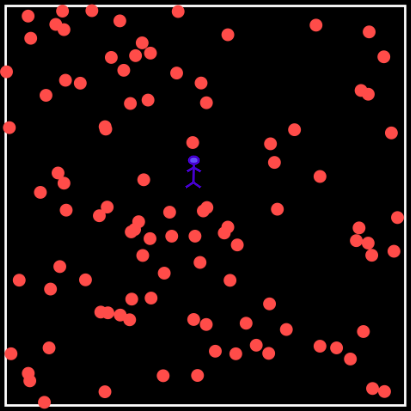

- With probability $1 - p$, stays at $i$
- With probability $p$, chooses uniformly among $k$ nearest neighbours $\mathcal{N}_k(i)$

Problem statement

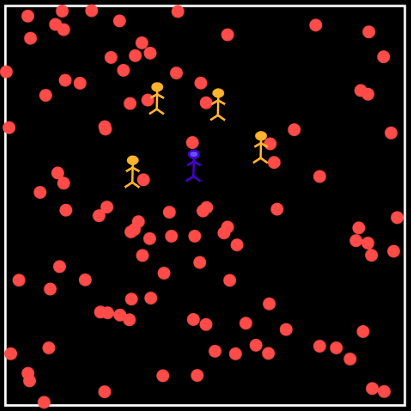

Define the effective arrival rate at server $i$:
$\lambda_{\text{eff}}(i) = $ $\lambda(1 - p)$ $+$ $\sum_{j: i \in \mathcal{N}_k(j)} \frac{p}{k} \lambda$

The effective load at server $i$ is $$\rho_i = \frac{\lambda_{\text{eff}}(i)}{\mu}$$

A server is overloaded if $\rho_i > 1$

The main object of interest:
$\mathcal{O}_N$ $= \frac{1}{N} \left| \{ i : \rho_i > 1 \} \right|$

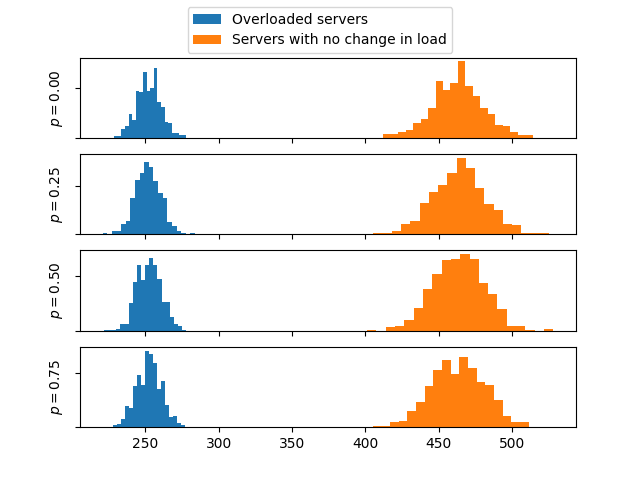

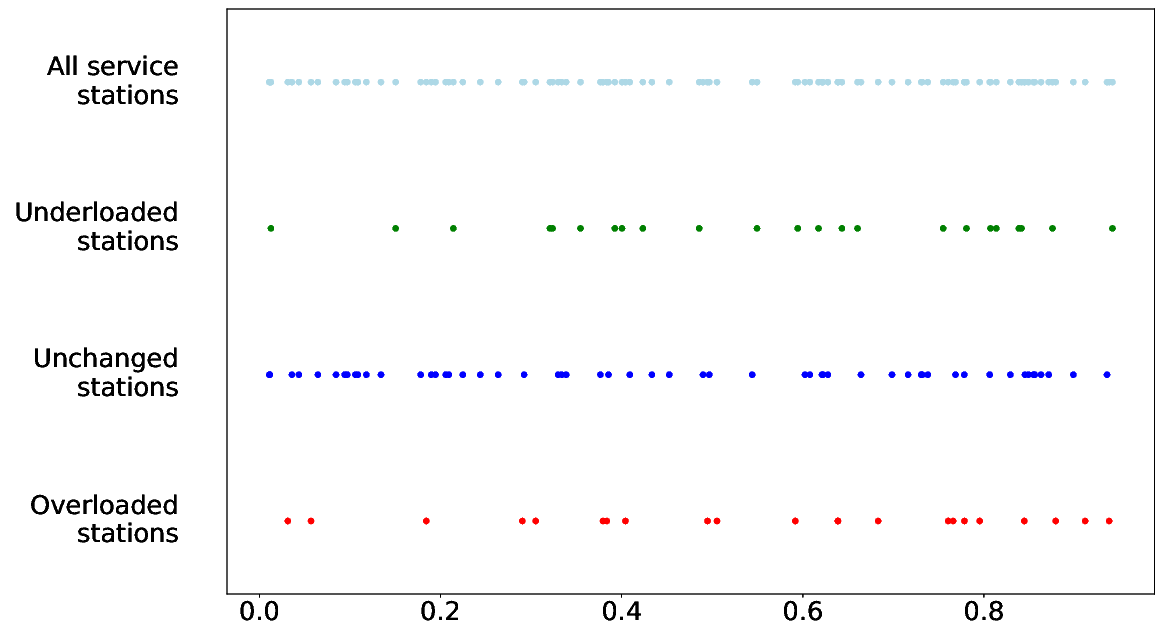

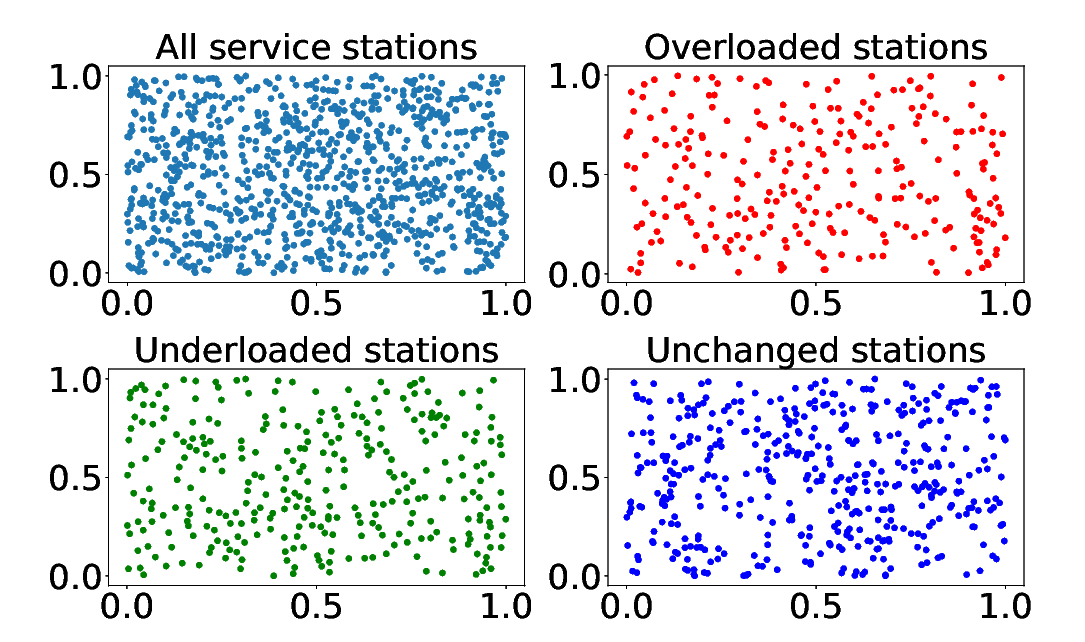

Fraction of overloaded servers

Main Result: General Dimension

If $\frac{\lambda}{\mu} \leq \frac{1}{1 - p + \alpha_d p}$, then $\mathcal{O}_N = 0$ a.s. for all $N$.

If $\frac{\lambda}{\mu} > \frac{1}{1 - p + \alpha_d p}$, then there exist constants $q_{d,k,n}$ and $\sigma_{d,k}$ such that
- Law of large numbers:

  $\ \ \ \ \ \mathcal{O}_N$ $\xrightarrow{\text{a.s.}} \sum_{n = \lfloor \theta \rfloor + 1}^{\alpha_d k} q_{d,k,n}$

  where $\theta = k + \frac{k}{p} \left( \frac{\mu}{\lambda} - 1 \right)$
- Central limit theorem:
  $ \ \ \ \ \ \sqrt{N} (\mathcal{O}_N - \mathbb{E}[\mathcal{O}_N])$ $\xrightarrow{d} \mathcal{N}(0, \sigma_{d,k}^2)$

$\alpha_d \le \text{ kissing number}$

Main Result: $d=1$ and $k=1$

If $\frac{\lambda}{\mu} \leq \frac{1}{1 + p}$, then $\mathcal{O}_N = 0$ a.s. for all $N$.

If $\frac{\lambda}{\mu} > \frac{1}{1 + p}$, then
- Law of large numbers:

  $\ \ \ \ \ \mathcal{O}_N$ $\xrightarrow{\text{a.s.}} \frac{1}{4}$
- Central limit theorem:
  $ \ \ \ \ \ \sqrt{N} (\mathcal{O}_N - \mathbb{E}[\mathcal{O}_N])$ $\xrightarrow{d} \mathcal{N}(0, \frac{19}{240})$
- Expected number: For every $N\ge 4$,

  $ \ \ \ \ \ \mathbb{E} \big[\mathcal{O}_N\big]$ $ = \frac{1}{4}$

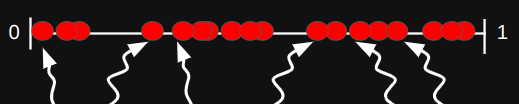

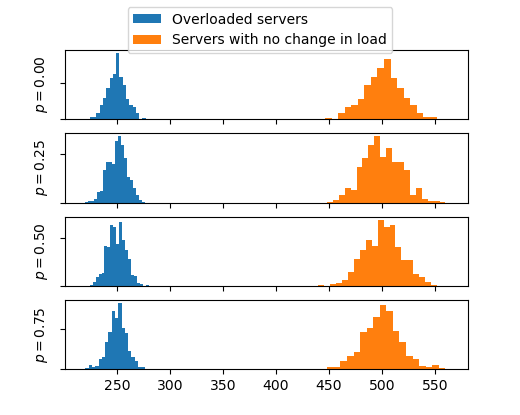

One dimension

Counterintuitive: Nearest neighbour relation is not symmetric.
Suffices to look at the $p=1$ case.

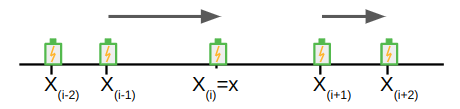

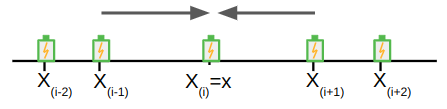

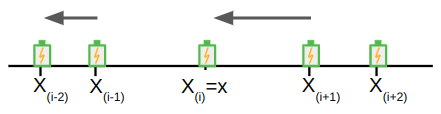

Distribution of consecutive ordered statistics

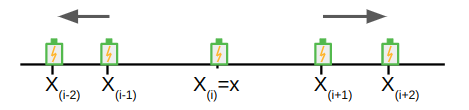

Load = 0

Load = 2

Load = 1

One dimension

Load = 0

Load = 2

Load = 1

All confgurations are equally likely

$ \mathbb{E} \big[\mathcal{O}_N\big]$ $= \mathbb{E}\big[\sum_{i=1}^N \mathbf{1}\big\{\text{server }i \text{ has load }2 \big\}\big] = \frac{1}{4}$

Can also show # of servers with load 0 = # servers with load 2

Drawbacks: Hard to generalize to $k>1$ or $d>1$.

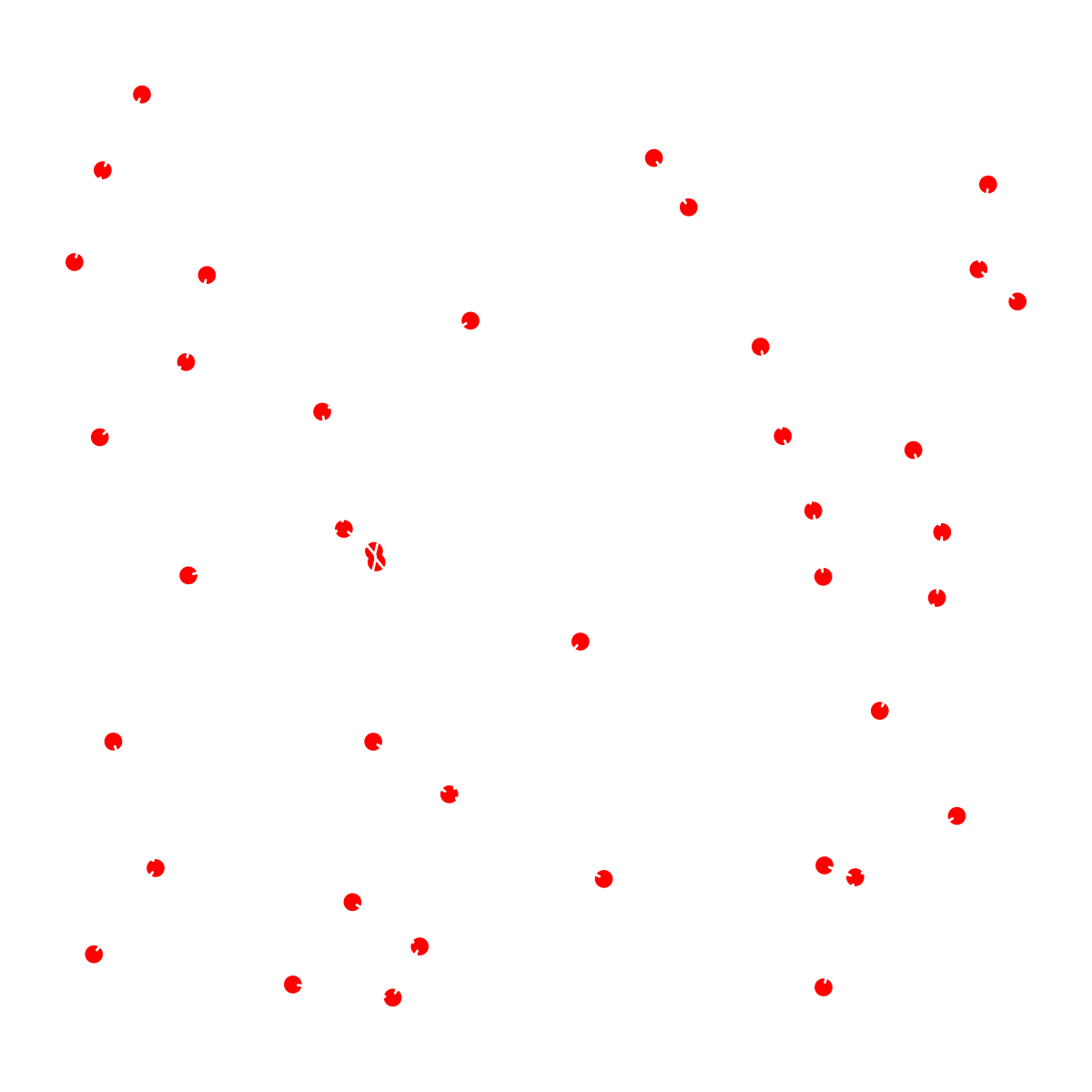

$k$-NN graph

Directed graph on $N$ vertices, $G_{d,k}^N$

An edge from $i\rightarrow j$ if $j$ is one of the $k$ nearest neighoburs of $i$.

Properties: For all $i \in [N]$,
- $d_{\text{out}}(i) = k$
- $d_{\text{in}}(i) \le \alpha_d k$

Define $Q_{d,k,j}^N$ $\:=$ Number of nodes with in-degree $j$ in $G_{d,k}^N$

LLN and CLT

$\frac{Q_{d,k,j}^N}{N} \xrightarrow{a.s.} q_{d,k,j} $ and $\frac{Q_{d,k,j}^N-\mathbb{E}Q_{d,k,j}^N}{\sqrt{N}} \xrightarrow{d} \mathcal{N}(0,\sigma_{d,k,j}^2)$

Overloaded servers and the $k$-NN graph

$k$-NN graph - $G_{d,k}^N$

Define $Q_{d,k,j}^N$ $\:=$ Number of nodes with in-degree $j$ in $G_{d,k}^N$

LLN and CLT

$\frac{Q_{d,k,j}^N}{N} \xrightarrow{a.s.} q_{d,k,j} $ and $\frac{Q_{d,k,j}^N-\mathbb{E}Q_{d,k,j}^N}{\sqrt{N}} \xrightarrow{d} \mathcal{N}(0,\sigma_{d,k,j}^2)$

A server $i$ is overloaded if

$\rho_i > 1$

$\lambda_{\text{eff}}(i) > \mu$

$ \lambda(1 - p)+ \sum_{j: i \in \mathcal{N}_k(j)} \frac{p}{k} \lambda > \mu $

$ \lambda(1 - p)+ d_{\text{in}}(i) \frac{p}{k} \lambda > \mu $

$ d_{\text{in}}(i) >k+\frac{k}{p}\Big(\frac{\mu }{\lambda}-1\Big) =: \theta $

Fraction of overloaded servers
$\hspace{3cm}\mathcal{O}_N$ $=\begin{cases}\frac{1}{N} \sum_{j=\theta+1}^{\alpha_d k }Q_{d,k,j}^N & \theta < \alpha_d k \\ 0 & \theta \ge \alpha_d k\end{cases}$
